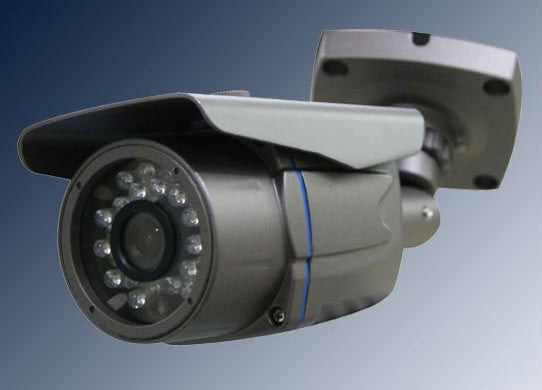

This SeqCam SEQ7214 Weatherproof IR Color Security Camera is adopted the latest SONY CCD technology of sensor and driver. The most attractive characteristics are water-resistant, small and easy hidden, suits the elevator and corridor, and widely applicable to day & night, indoor & outdoor. In addition, it owns the characters of high definition and stability, strong anti-jamming, rich and real color.
Features:
- Provides sharp, high-resolution images with its SONY 1/3" EXview HAD CCD II Image Sensor
- 700 TV lines of resolution for better monitoring
- 24 Infrared LEDs which allow you to see up to 20m/65.6ft in complete darkness
- Weatherproof for better protection
- 3-axis bracket for easy mounting
Model |
SEQ7214 |
||
TV System |
NTSC |
PAL |
|
Validity Pixel |
976(H) x 494(V) |
976(H) x 582(V) |
|
Image Sensor |
1/3" SONY EXview HAD CCD II |
||
Camera Lens |
3.6mm |
||
Horizontal Resolution |
700 TV Line |
||
Minimum Illumination |
0 Lux(with Infrared LED ON) |
||
Infrared LEDs |
24 pcs |
||
Night Vision Distance |
20m(65.6ft) |
||
Auto Gain Control |
Auto |
||
Electronic Shutter |
1/60sec ~ 1/100000sec |
1/50sec ~ 1/100000sec |
|
S/N Ratio |
More than 52dB |
||
Gamma Correction |
0.45 |
||
Video Output |
1.0Vpp, 75Ohms |
||
Operating Temperature |
-10ºC ~ 45ºC |
||
Water Resistance |
IP66 |
||
Power Supply / Current |
DC12V(+/-10%) / 350mA |
||
Weight |
830g |
||
Dimension |
175mm x 124mm x 83mm |
||
