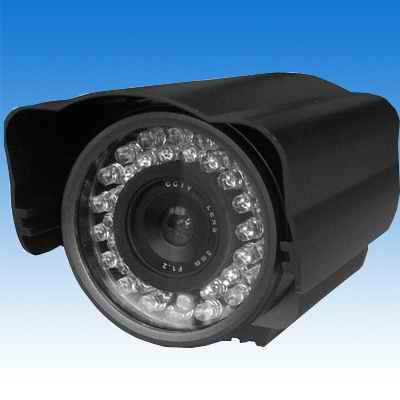

This SeqCam SEQCM909CH Weatherproof Day&Night Color Security Camera is adopted the latest SHARP CCD technology of sensor and driver. The most attractive characteristics are water-resistant, and widely applicable to day & night, indoor & outdoor. In addition, it owns the characters of high definition and stability, strong anti-jamming, rich and real color.
Features:
- Provides sharp, high-resolution images with its SHARP 1/4" CCD Image Sensor
- 420 TV lines of resolution for better monitoring
- 36 Infrared LEDs which allow you to see up to 25m/82ft in complete darkness
- Weatherproof for better protection
- 3-axis bracket for easy mounting
Model |
SEQCM909CH |
||
TV System |
NTSC |
PAL |
|
Validity Pixel |
512(H) x 492(V) |
512(H) x 582(V) |
|
Image Sensor |
1/4" SHARP CCD |
||
Camera Lens |
8.0mm |
||
Horizontal Resolution |
420 TV Line |
||
Minimum Illumination |
0 Lux(with Infrared LED ON) |
||
Infrared LEDs |
36 pcs |
||
Night Vision Distance |
25m(82ft) |
||
Auto Gain Control |
Auto |
||
Electronic Shutter |
1/60sec ~ 1/100000sec |
1/50sec ~ 1/100000sec |
|
S/N Ratio |
More than 48dB |
||
Gamma Correction |
0.45 |
||
Video Output |
1.0Vpp, 75Ohms |
||
Operating Temperature |
-10ºC ~ 50ºC |
||
Water Resistance |
IP66 |
||
Power Supply / Current |
DC12V(+/-10%) / 500mA |
||
Weight |
600g |
||
Dimension |
120mm x 90mm x 90mm |
||
