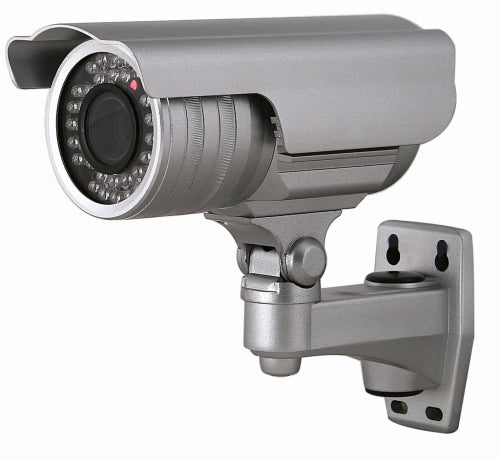

This SeqCam SEQ7401 Weatherproof Day&Night Color Security Camera is adopted the latest SONY CCD technology of sensor and driver. The most attractive characteristics are water-resistant, and widely applicable to day & night, indoor & outdoor. In addition, it owns the characters of high definition and stability, strong anti-jamming, rich and real color.
Features:
- Provides sharp, high-resolution images with its SONY 1/3" Super HAD CCD Image Sensor
- 600 TV lines of resolution for better monitoring
- 36 Infrared LEDs which allow you to see up to 30m/98.4ft in complete darkness
- User can manually adjust the lens from 4mm to 9mm for different angle of view
- Weatherproof for better protection
- 3-axis bracket for easy mounting
Specifications:
Model |
SEQ7401 |
TV System |
NTSC |
PAL |
Validity Pixel |
811(H) x 508(V) |
795(H) x 596(V) |
Image Sensor |
1/3" SONY Super HAD CCD |
Camera Lens |
4mm ~ 9mm |
Horizontal Resolution |
600 TV Line |
Minimum Illumination |
0.001 Lux / 0 Lux(with Infrared LED ON) |
Infrared LEDs |
36 pcs |
Night Vision Distance |
30m(98.4ft) |
Auto Gain Control |
Auto |
Electronic Shutter |
1/60sec ~ 1/100000sec |
1/50sec ~ 1/100000sec |
S/N Ratio |
More than 48dB |
Gamma Correction |
0.45 |
Video Output |
1.0Vpp, 75Ohms |
Operating Temperature |
-10ºC ~ 45ºC |
Water Resistance |
IP66 |
Power Supply / Current |
DC12V(+/-10%) / 500mA |
Weight |
1300g |
Dimension |
200mm x 171mm x 83mm |
