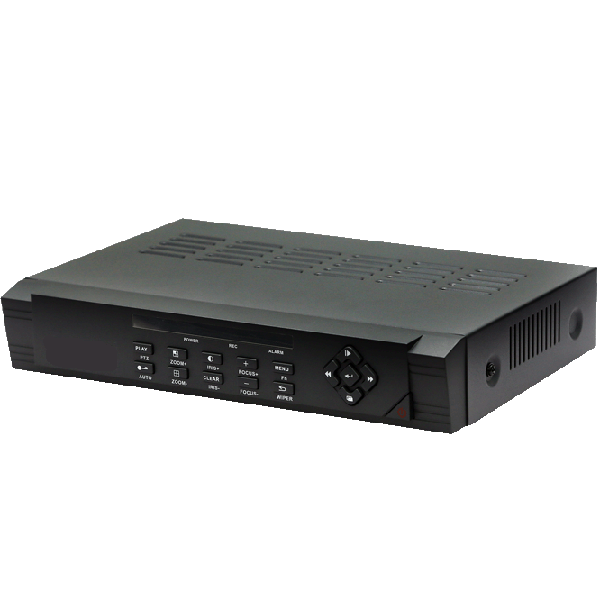

SeqCam Network Security DVR with 8 Channels/H. 264/RS 485/USB Backup
SeqCam Network Security DVR with 8 Channels/H. 264/RS 485/USB Backup
SeqCam SEQ8408 Network Security DVR is an advanced 8 channels H.264 smart DVR that allows you to access it remotely from both the internet via Internet Explorer and/or select 3G/4G smart phones including your iPhone®, Android® and select Blackberry® Models. This Net DVR is packed with features like motion activated recording, real time email alerts, digital watermarking of recorded files, USB backup, D1 recording and a simple point and click interface.
Features:
- 8 Channels H.264 Smart DVR (No Hard Drive)
- Playback all Channels at Once
- Viewable Anywhere in the World via Internet Explorer
- Viewable on Your 3G/4G Smart Phone and tablet PCs
- Motion Activated Recording / Email Alerts
- Simple Point and Click User Interface via USB Mouse Included
- Support USB Backup
- Support CMS function
- User-friendly menu and easy to operate
- Support up to 1360X768 VGA resolution
Model |
SEQ8408 |
Housing Height |
1U |
Operation System |
Linux |
Video Input |
8 channels video input |
Video Output |
1 BNC video output |
1 VGA output | |
Audio Input |
2 channels audio input |
Audio Output |
1 BNC audio output |
Total Frames |
PAL:100fps/ NTSC:120fps |
Compression Algorithm |
Video: H.264 / Audio: G.711 or G.722 or G.726 |
Record Resolution |
CIF: PAL (352*288), NTSC (352*240) |
|
Preview Resolution |
4CIF(PAL:704*576,NTSC:704*480) |
VGA: Up to 1360*768 | |
Dual Stream |
Yes |
Image Quality |
6 levels optional |
HDD |
1 SATA interfaces (Max support 2000GB) |
Alarm Input |
4 alarm inputs |
Alarm Output |
2 alarm outputs |
Backup Interface |
USB2.0 / High Speed SATA / Remote Backup |
Digital Zoom |
Yes |
Mobile View |
Yes( Supporting Windows Mobile, Symbian and iPhone System) |
Network Interface |
RJ45 10M/100M Ethernet Interface |
I/O Interface |
RS485forPTZ |
USB for Mouse | |
Other Functions |
Watchdog / Dual Stream / PPPoE / DHCP / DDNS |
Power Supplier |
220±30% V, 50±3% Hz or 110±20% V, 60±3% Hz |
Power Consumption |
6.5W (without hard disk) |
Work Temperature |
- 10℃～ +55℃ |
Working Humidity |
10% ～ 90% |
Dimension |
325mm*200mm*55mm |
Gross weight |
4KG (without hard disk) |
