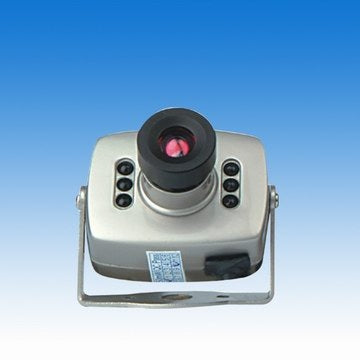

This SeqCam SEQCM208CA Mini Color Security Camera is adopted the latest OmnVision CMOS technology of sensor and driver. The most attractive characteristics are water-resistant, small and easy hidden, suits the elevator and corridor, and widely applicable to day & night, indoor & outdoor. In addition, it owns the characters of high definition and stability, strong anti-jamming, rich and real color.
Features:
- Provides sharp, high-resolution images with its OmniVision 1/3" CMOS Image Sensor
- 380 TV lines of resolution for better monitoring
- 6 Infrared LEDs which allow you to see up to 5m/16.4ft in complete darkness
Model |
SEQCM208CA |
||
TV System |
NTSC |
PAL |
|
Validity Pixel |
510(H) x 492(V) |
628(H) x 582(V) |
|
Image Sensor |
1/3" OmnVision CMOS |
||
Camera Lens |
4.0mm |
||
Horizontal Resolution |
380 TV Line |
||
Minimum Illumination |
0 Lux(with LED ON) |
||
Infrared LEDs |
6 pcs |
||
Night Vision Distance |
5m(16.4ft) |
||
Auto Gain Control |
Auto |
||
Electronic Shutter |
1/60sec ~ 1/100000sec |
1/50sec ~ 1/100000sec |
|
S/N Ratio |
48dB |
||
Gamma Correction |
0.45 |
||
Video Output |
1.0Vpp, 75Ohms |
||
Operating Temperature |
-10ºC ~ 50ºC |
||
Water Resistance |
IP66 |
||
Power Supply / Current |
DC12V(+/-10%) / 500mA |
||
Weight |
110g |
||
Dimension |
38mm x 34mm x 33mm |
||
